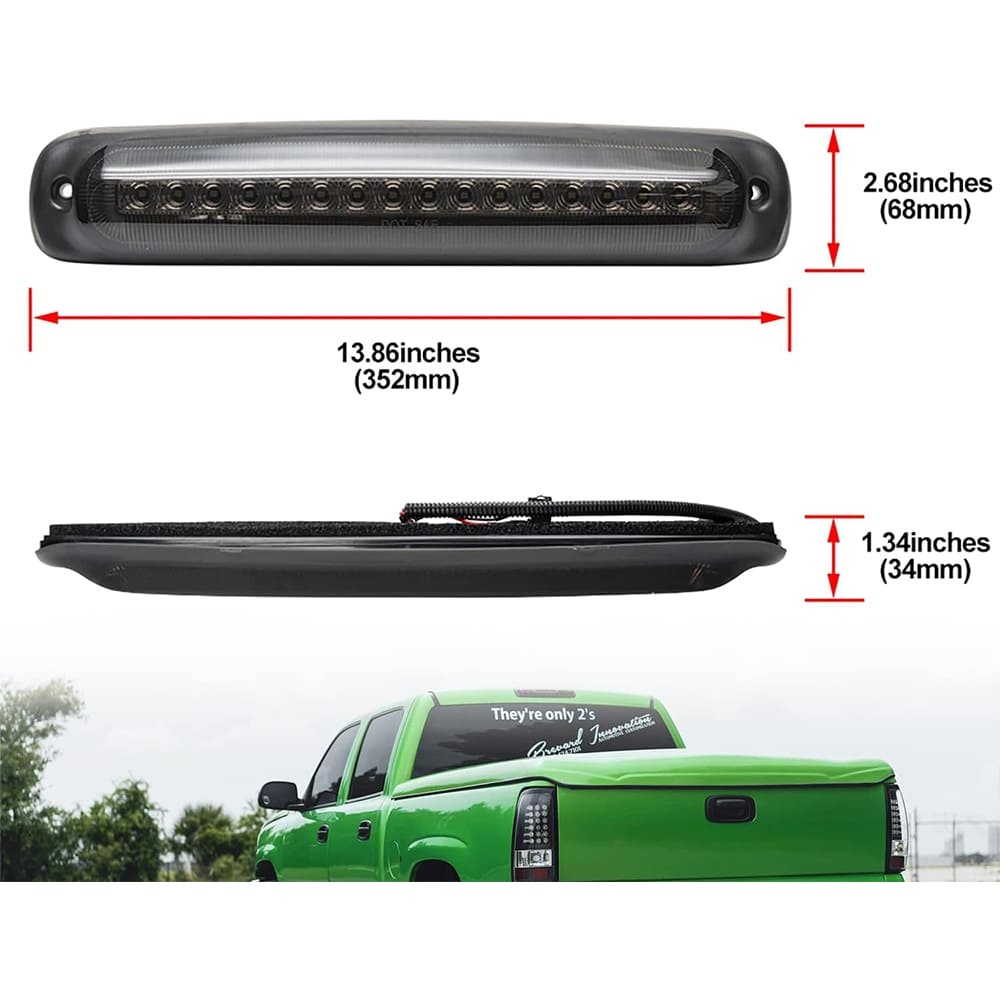

Led Third Brake Light Replacement for 1999-2006 Chevy Silverado GMC Sierra 1500 2500 Red LED Strobe Rear 3rd Brake Center High Mount Stop Lamp + White Cargo Light Kit Euro Smoked Lens

Features:
1. Lens Color: Smoke Lens
2. Light color: Red+White
3. High Gloss Smoked Polycarbonate lens and ABS housing for high durability.

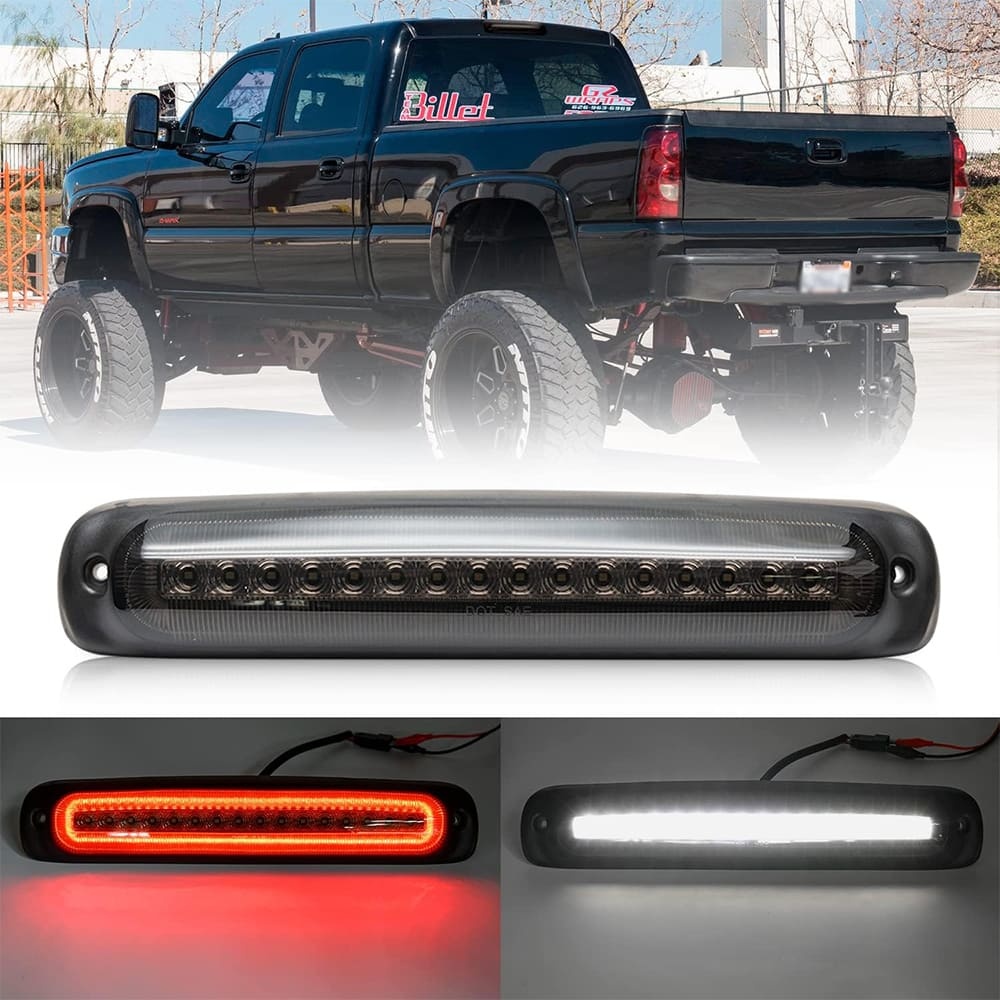

4. Powered by high power red LED chips as high mount stop light, xenon white Led chips as roof cargo light, super bright with much brighter output and more trendy appearance.
5. Better enhance the safety of driving in daytime and nighttime.
6. Strobe Feature: when you initially step on the brake, it flashes 5 times quickly then stays fully on until you lift your foot off the brake. The quick flash can be activated or deactivated with the switch.
7. Plug and play installation, direct replacement of the OEM factory CHMSL lamp.

Compatibility:

• 1999 2000 2001 2002 2003 2004 2005 2006 Chevy Silverado 1500
• 1999 2000 2001 2002 2003 2004 Chevy Silverado 2500
• 2001 2002 2003 2004 20052006 Chevy Silverado 1500HD / 2500HD / 3500
• 2007 Chevy Silverado Classic 1500 / 1500HD / 2500HD / 3500
• 1999 2000 2001 2002 2003 2004 2005 2006 GMC Sierra 1500 / 2500
• 2001 2002 2003 2004 2005 2006 GMC Sierra 1500HD / 2500HD / 3500
• 2007 GMC Sierra Classic 1500 / 1500HD / 2500HD / 3500
• Does not fit 2nd Gen Silverado & 1st/ 3rd Gen Sierra!!!
• OEM Part No: 15884341, 19169016, 5978318.

Package:
1x smoke lens LED 3rd brake light bar
1 year warranty.



Notice:

Due to the complex and different circuits of 1st Gen Silverado & 2nd Gen Sierra, you may need to use a standard 4-pin SPST relays to make the cargo light work well with your truck. Such problems are listed below:

• The cargo lights won't turn on.
• The cargo lights stay on.
• The cargo lights are always dimly lit.

You can follow below steps and check the circuit diagram in above picture to finish the rewiring. Here you will see the 4 wires that are on the cargo lamp connector from the truck. The colors of the 4 wires are orange, blue with a white stripe, light blue, and black respectively.

1. Cut the orange wire and split it into two, then connect these two wires to the pin labeled 30, pin labeled 85 separately.
2. Cut the blue/white wire and connect it to the pin labeled 86. Now, connect the brown wire that powers the white cargo lamp LEDs to the pin labeled 87.
3. Twist the white and black wires which coming out of the LED third brake cargo lamp assy together, and connect them to the black ground wire coming out of the truck.

If there is difficulty, we are glad to help you out and send free 4-pin SPST relays to you.
